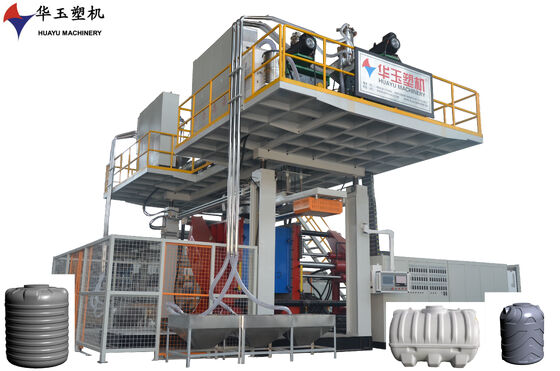

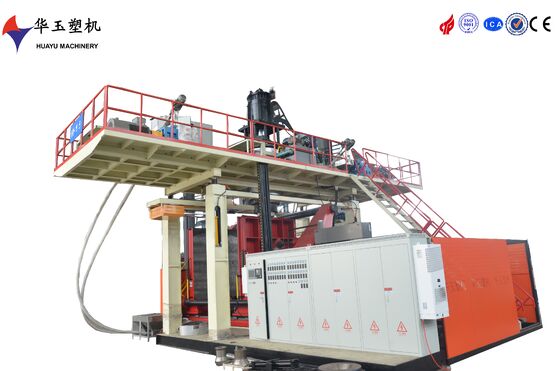

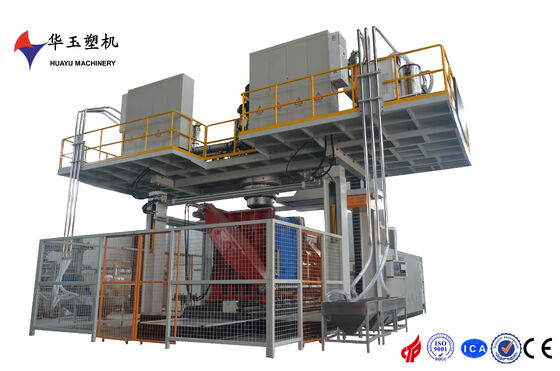

5000L Capacity 4-Layer Co-Extrusion High-Precision IBC Blow Molding Machine for Large Plastic Products

  • 5000L Capacity 4-Layer Co-Extrusion High-Precision IBC Blow Molding Machine for Large Plastic Products
  • 5000L Capacity 4-Layer Co-Extrusion High-Precision IBC Blow Molding Machine for Large Plastic Products
  • 5000L Capacity 4-Layer Co-Extrusion High-Precision IBC Blow Molding Machine for Large Plastic Products
  • 5000L Capacity 4-Layer Co-Extrusion High-Precision IBC Blow Molding Machine for Large Plastic Products
Место происхождения Китай
Фирменное наименование Huayu
Сертификация CE,ISO9001
Номер модели HYBM-5004
Количество мин заказа 1 комплект
Цена Negotiate
Упаковывая детали по контейнеру
Время доставки 4 месяца
Условия оплаты Л/К, Т/Т
Поставка способности 4 комплекта в месяц
Подробная информация о продукте
Материал пресс-формы Алюминиевый сплав Источник питания 380 В, 50 Гц, 3 фазы
ПЛК Сименс Материал изделия ПНД
Емкость 5000 литров Слои 4 слоя
Выделить

5000L IBC blow molding machine

,

4-layer co-extrusion blow molder

,

high-precision IBC tank machine
Оставьте сообщение
Характер продукции
5000L 4-Layer Large High-Precision Water Tank Blow Molding Machine with Efficient
This high-precision blow molding machine with a 5000L capacity and 4-layer co-extrusion is designed for producing high-quality, multi-layered plastic products. The integrated water tank system ensures accurate temperature control and consistent cooling, resulting in superior product quality. The machine's advanced control system offers precise control over the molding process, ensuring consistent product dimensions and quality. Its durable construction and reliable performance make it suitable for industries requiring high-precision plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
Blowing and Cooling System Specifications
Stretching Stroke According to products
Blow Pin Up/Down Stroke 600mm
Air Seat Stroke 400mm
Maximum Air Pressure 0.8Mpa
Air Consumption 3m³/min
Cooling Method Circulating Water
Water Pressure 0.3MPa
Cooling Water Consumption 75m³/h
Hydraulic System Specifications
Main Oil Tank Capacity 1500L
Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 185CC
Main Oil Pump Motor 60kw
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 35
Servo Oil Pump Motor 11kw
5000L Capacity 4-Layer Co-Extrusion High-Precision IBC Blow Molding Machine for Large Plastic Products 0
